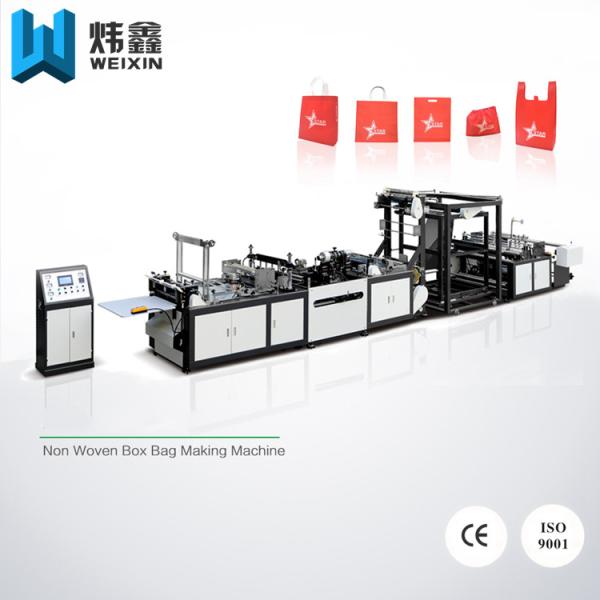

Non Woven Carry Bag Making Machine

Usage

This machine is a kind of multifunctional non woven box bag making machine, with non woven fabric as rawmaterial, can fully automatic make nonwoven bag products such as flat bag, shopping bag, gift bag,clothes bag, handle loop bag, vest bag, box bag, shoe bag and so on.

Performance and Characteristics

1. This machine adopt Taiwan touch screen computer display, PLC computer program which can be

edited.

2. Auto meter counting &stopping, could freely setting number.

3. Computer Fixed-length, printing color mark track orientation, Auto-stop when complete.

4. High voltage static processor, Auto constant temperature heating controller.

5 . It could control auto pneumatic handle punching on machine.

6. Unwinding magnetic powder tension control with manual, Auto side-correction control.

7. This machine adopt ultrasonic welding of all aspects, bag mouth folding welding, side sealing, once

full completed,fast speed, east to operate, firm sealing, beautiful and decent.

Non Woven Carry Bag Making Machine Procedure

Raw material autofolding -> Bag month folding -> Thermal bonding -> Side folding -> Bottom sealing -> Online impression -> Thermal bonding -> Bottom edge cut -> Bag cut -> Collection

Advantage

1. Ultrasonic sealing device to seal bags in good quality.

2. Computer control, full automatic feeding, automatic counting, full automatic stopping.

3. Easy to operate and strong sealing effective.

4. Photocell to track the color.

5. Equipped with servo motor.

6. Equipped auto pneumatic punching device.

7.Equipped with tension control device.

8. Machine has got CE Certification, SGS Certification, BV Certification, company has obation I

SO9001:2008 certification, High quality, good machine price.

Main Technical Data

We are involved in offering Non Woven Bag Making Machine that is mainly used for the non woven of loop handle bags ,box bags,d cut bag and Vest bags;We delicated in supply the turnkey solution in nonwoven packing project, from nonwoven fabric making machine to nonwoven bag making machine. We keep making improvement and innovation to our machine targeting to make top nonwoven packing material.Wenzhou Wexin Machinery is a manufacturer and suppier integrated with development,production,marketing and provide one-stop service ,we collect all the knowledge and resource to service our customer with complete solutions.
