High Output Material Die Cutting Machine With Slitting Speed 30-180PCS/Min

    Buy cheap High Output Material Die Cutting Machine With Slitting Speed 30-180PCS/Min from wholesalers

    Buy cheap High Output Material Die Cutting Machine With Slitting Speed 30-180PCS/Min from wholesalers
    • Buy cheap High Output Material Die Cutting Machine With Slitting Speed 30-180PCS/Min from wholesalers

    High Output Material Die Cutting Machine With Slitting Speed 30-180PCS/Min

    Ask Lasest Price
    Brand Name : WEIXIN
    Model Number : WXM-320
    Certification : CE
    Price : Negotiation
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 25 sets/month
    Delivery Time : 30 working days
    • Product Details
    • Company Profile

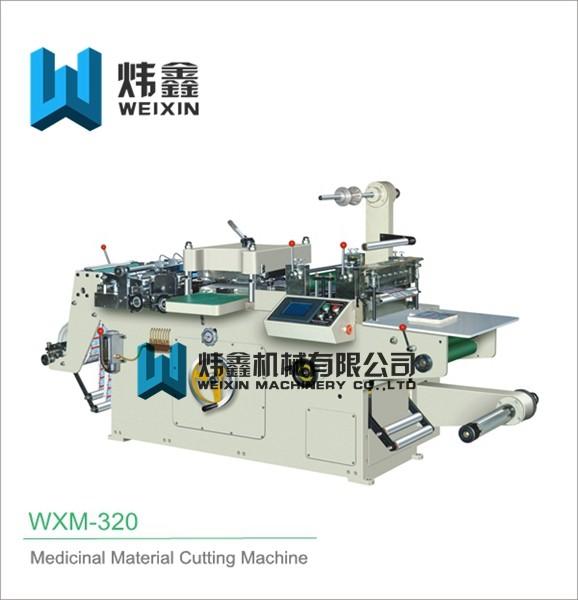

    High Output Material Die Cutting Machine With Slitting Speed 30-180PCS/Min

    High speed Automatic Medicinal Material Cutting Machine with 30-180PCS/Min


    About Us-Wexin Machinery

    We are involved in offering Non Woven Bag Making Machine that is mainly used for the non woven of loop handle bags ,box bags,d cut bag and Vest bags;We delicated in supply the turnkey solution in nonwoven packing project, from nonwoven fabric making machine to nonwoven bag making machine. We keep making improvement and innovation to our machine targeting to make top nonwoven packing material.Wenzhou Wexin Machinery is a manufacturer and suppier integrated with development,production,marketing and provide one-stop service ,we collect all the knowledge and resource to service our customer with complete solutions.


    Features

    This machine is adopted imported wiring.From upper to down structure ,feed -in,die cutting,waste off,are

    controlled by computer in one time.Material on both sides and the longitudinal direction by the photoelectric tracking and positioning of the full automatic high-precision die cutting function.


    Main Technical Data
    ModelWXM-320
    Cutting Speed30-180pcs/min
    Max Unwind Diameter500mm
    Max Web Width320mm
    Max die Cutting width300mm
    Max die cutting Length300mm
    Positioning Precision+0.1mm
    Motor power2.2kw
    Total Power3.2kw

    Machine configuration list


    NameQuantityModelRemarks
    frequency converter1Schneider2.2KW
    Servo motor1Yaskawa0.85KW
    Touch Screen1TaiwanWeinview5.7 inch
    PLC1MitsubishiJapanese
    photoelectric tracking1Baideli
    Photoelectric correction2Baideli
    Motor1Shang hai rui yu2.2KW
    knife board2piece
    polymethyl methacrylate5piece
    Tool1set
    Touch Screen2Siemens
    Cutter1Zhongxing industry control equipment
    DC- governor plate2Zhongxing industry control equipment
    Solid2Shanghai xi zheng
    Sponge1sheet
